We trained our first neural network in the previous notebook which had 3 layers
- Input Layer
- Hidden Layer
- Output Layer
Multiple Nodes
The network had 2 linear layers($C_1$,0 $C_2$) in the hidden layer each of which gave us a linear classifier, then we used another linear layer($C_3$) in the output layer to combine $C_1$ and $C_2$ to give us a non-linear classifier($C$). That was amazing, now we can get non-linear classifiers.
Won’t it be even amazing it we can combine more than 2 linear classifiers?. Ofc yes, that will give a more accurate classifier. But how to combine 3 linear classifiers?
Just increase the number of nodes in the hidden layer.
This network will consider 3 linear layers and combine them to give a non-linear classifier/regressor.
Multiple layers (Deeper Neural Network)
Combination of multiple linear classifiers gives us a non-linear classifier, What if we combine multiple non-linear classifiers? Won’t that give us a more complex non-linear classifier which can fit/classify our data more accurately?
How to do that? We will take multiple copies of linear classifiers and combine them differently using another hidden layer instead of output layer and combine these non-linear classifiers using output layers.
- Input(Input Layer)
- n linear classifiers(Hidden Layer 1)
- m non linear classifier = m combinations of (n linear classifiers)
- output MORE COMPLEX classifier = combination of (m non-linear classifier)
This network, will take 3 linear classifiers and make 4 different combination of linear classifiers to get 4 non-linear classifiers and combine them to get a more complex Non-Linear Classifier.
By stacking more Hidden Layers and nodes, we can get a more and more complex non-linear classifier/regressor. We visualized only for 2-D Data, this also applies for multi dimensional data, but unfortunately we cannot visualize multidimensioanl data other than 2/3. In 3-d data the linear classifiers will be planes and the non-linear classifier will be some surface which are combinations of planes.
This is Deep Neural network.
Note: This is a mathematical analysis of how a neural network can make a more complex classifier/regressor, but we really do not know what features a neural network will consider to make the complex function. That is why it’s called Machine Learning, we can try to understand what features the model is using to classify, but can’t be sure.
Now Let’s compare neural network with a deeper neural network and try to visualize the classifier.
Deep Neural Networks in Tensorflow

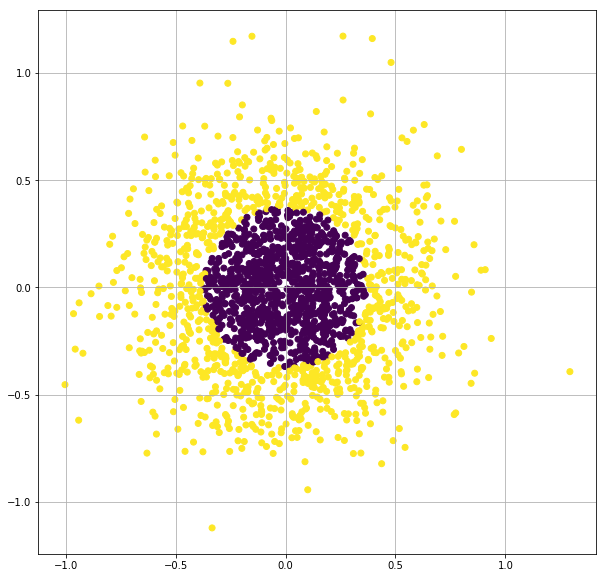

Dataset
from sklearn.datasets import make_gaussian_quantiles
from sklearn.model_selection import train_test_split
import matplotlib.pyplot as plt
X, y = make_gaussian_quantiles(n_samples=2000, n_features=2, n_classes=2, random_state=3, cov=0.1)
plt.figure(figsize=(10,10))
plt.scatter(X[:,0], X[:,1],c=y)
plt.grid(True)
plt.show()
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, shuffle=True)
X_train, X_val, y_train, y_val = train_test_split(X_train, y_train, test_size=0.2, shuffle=True)
print('Train = {}\nTest = {}\nVal = {}'.format(len(X_train), len(X_test), len(X_val)))
Train = 1120
Test = 600
Val = 280

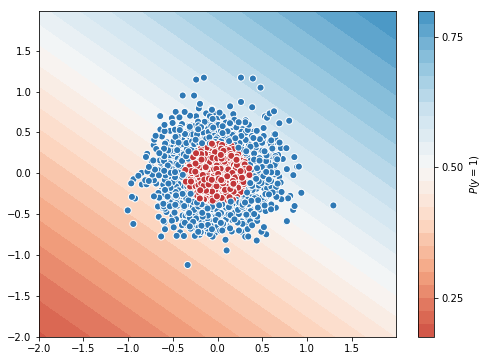

Linear Classifier (0 hidden layer)
import tensorflow as tf
from tensorflow import keras
import numpy as np
import matplotlib.pyplot as plt
tf.keras.backend.clear_session()
# random number initialized to be the same, for reproducing the same results.
np.random.seed(0)
tf.set_random_seed(0)
model = tf.keras.Sequential([
keras.layers.Dense(units=1, input_shape=[2]),
keras.layers.Activation('sigmoid')
])
model.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])
tf_history = model.fit(X_train, y_train, epochs=20, verbose=True, validation_data=(X_val, y_val))
# contour plot
xx, yy = np.mgrid[-2:2:.01, -2:2:.01]
grid = np.c_[xx.ravel(), yy.ravel()]
probs = model.predict(grid)[:,0].reshape(xx.shape)
f, ax = plt.subplots(figsize=(8, 6))
contour = ax.contourf(xx, yy, probs, 25, cmap="RdBu",
vmin=0, vmax=1)
ax_c = f.colorbar(contour)
ax_c.set_label("$P(y = 1)$")
ax_c.set_ticks([0, .25, .5, .75, 1])
ax.scatter(X[:,0], X[:, 1], c=y, s=50,
cmap="RdBu", vmin=-.2, vmax=1.2,
edgecolor="white", linewidth=1)
plt.show()
# test accuracy
from sklearn.metrics import accuracy_score
y_test_pred = model.predict(X_test)
test_accuracy = accuracy_score((y_test_pred > 0.5), y_test)
print('\nTest Accuracy = ', test_accuracy)
Train on 1120 samples, validate on 280 samples
Epoch 1/20
1120/1120 [==============================] - 0s 107us/sample - loss: 0.7116 - acc: 0.4839 - val_loss: 0.7083 - val_acc: 0.5000
Epoch 2/20
1120/1120 [==============================] - 0s 40us/sample - loss: 0.7108 - acc: 0.4857 - val_loss: 0.7074 - val_acc: 0.4893
.
.
Epoch 19/20
1120/1120 [==============================] - 0s 38us/sample - loss: 0.7001 - acc: 0.5071 - val_loss: 0.6994 - val_acc: 0.5107
Epoch 20/20
1120/1120 [==============================] - 0s 37us/sample - loss: 0.6997 - acc: 0.5071 - val_loss: 0.6991 - val_acc: 0.5071
Test Accuracy = 0.5183333333333333
You can train for more epochs, but the model won’t really improve the metrics.

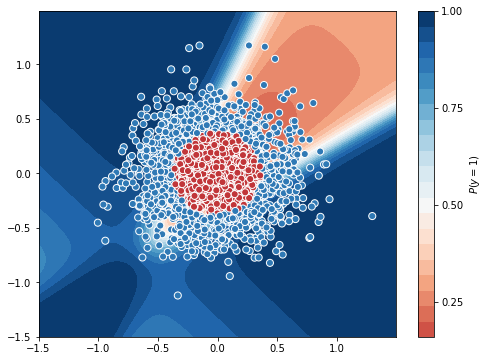

Neural network (1 hidden layer, 3 hidden units)
import tensorflow as tf
from tensorflow import keras
import numpy as np
import matplotlib.pyplot as plt
tf.keras.backend.clear_session()
# random number initialized to be the same, for reproducing the same results.
np.random.seed(0)
tf.set_random_seed(0)
model = tf.keras.Sequential([
keras.layers.Dense(units=3, input_shape=[2]),
keras.layers.Activation('tanh'),
keras.layers.Dense(units=1),
keras.layers.Activation('sigmoid')
])
model.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])
tf_history = model.fit(X_train, y_train, epochs=500, verbose=True, validation_data=(X_val, y_val))
# contour plot
xx, yy = np.mgrid[-1.5:1.5:.01, -1.5:1.5:.01]
grid = np.c_[xx.ravel(), yy.ravel()]
probs = model.predict(grid)[:,0].reshape(xx.shape)
f, ax = plt.subplots(figsize=(8, 6))
contour = ax.contourf(xx, yy, probs, 25, cmap="RdBu",
vmin=0, vmax=1)
ax_c = f.colorbar(contour)
ax_c.set_label("$P(y = 1)$")
ax_c.set_ticks([0, .25, .5, .75, 1])
ax.scatter(X[:,0], X[:, 1], c=y, s=50,
cmap="RdBu", vmin=-.2, vmax=1.2,
edgecolor="white", linewidth=1)
plt.show()
# test accuracy
from sklearn.metrics import accuracy_score
y_test_pred = model.predict(X_test)
test_accuracy = accuracy_score((y_test_pred > 0.5), y_test)
print('\nTest Accuracy = ', test_accuracy)
Train on 1120 samples, validate on 280 samples
Epoch 1/500
1120/1120 [==============================] - 0s 120us/sample - loss: 0.7086 - acc: 0.4982 - val_loss: 0.6955 - val_acc: 0.5429
Epoch 2/500
1120/1120 [==============================] - 0s 43us/sample - loss: 0.7065 - acc: 0.5080 - val_loss: 0.6948 - val_acc: 0.5679
.
.
Epoch 499/500
1120/1120 [==============================] - 0s 45us/sample - loss: 0.4358 - acc: 0.7973 - val_loss: 0.4756 - val_acc: 0.7643
Epoch 500/500
1120/1120 [==============================] - 0s 41us/sample - loss: 0.4355 - acc: 0.8000 - val_loss: 0.4755 - val_acc: 0.7643
Test Accuracy = 0.7683333333333333
This model learnt some complex classifers, but you can see by adding a hidden layer with 3 nodes, the accuracy increased a lot.
Now Let’s increase the no of nodes in the hidden layer
Neural network (1 hidden layer, 10 hidden units)
import tensorflow as tf
from tensorflow import keras
import numpy as np
import matplotlib.pyplot as plt
tf.keras.backend.clear_session()
# random number initialized to be the same, for reproducing the same results.
np.random.seed(0)
tf.set_random_seed(0)
model = tf.keras.Sequential([
keras.layers.Dense(units=10, input_shape=[2]),
keras.layers.Activation('tanh'),
keras.layers.Dense(units=1),
keras.layers.Activation('sigmoid')
])
model.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])
tf_history = model.fit(X_train, y_train, epochs=500, verbose=True, validation_data=(X_val, y_val))
# contour plot
xx, yy = np.mgrid[-1.5:1.5:.01, -1.5:1.5:.01]
grid = np.c_[xx.ravel(), yy.ravel()]
probs = model.predict(grid)[:,0].reshape(xx.shape)
f, ax = plt.subplots(figsize=(8, 6))
contour = ax.contourf(xx, yy, probs, 25, cmap="RdBu",
vmin=0, vmax=1)
ax_c = f.colorbar(contour)
ax_c.set_label("$P(y = 1)$")
ax_c.set_ticks([0, .25, .5, .75, 1])
ax.scatter(X[:,0], X[:, 1], c=y, s=50,
cmap="RdBu", vmin=-.2, vmax=1.2,
edgecolor="white", linewidth=1)
plt.show()
# test accuracy
from sklearn.metrics import accuracy_score
y_test_pred = model.predict(X_test)
test_accuracy = accuracy_score((y_test_pred > 0.5), y_test)
print('\nTest Accuracy = ', test_accuracy)
Train on 1120 samples, validate on 280 samples
Epoch 1/500
1120/1120 [==============================] - 0s 115us/sample - loss: 0.6930 - acc: 0.5321 - val_loss: 0.6990 - val_acc: 0.5393
Epoch 2/500
1120/1120 [==============================] - 0s 41us/sample - loss: 0.6924 - acc: 0.5670 - val_loss: 0.6982 - val_acc: 0.5286
.
.
Epoch 499/500
1120/1120 [==============================] - 0s 47us/sample - loss: 0.1024 - acc: 0.9732 - val_loss: 0.1357 - val_acc: 0.9643
Epoch 500/500
1120/1120 [==============================] - 0s 47us/sample - loss: 0.1023 - acc: 0.9723 - val_loss: 0.1358 - val_acc: 0.9643
Test Accuracy = 0.97

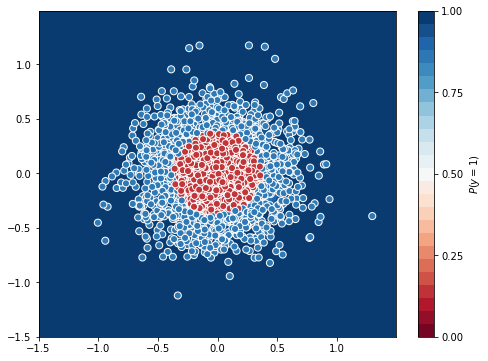

Neural network (2 hidden layers, 10 hidden units, 10 hidden units)
import tensorflow as tf
from tensorflow import keras
import numpy as np
import matplotlib.pyplot as plt
tf.keras.backend.clear_session()
# random number initialized to be the same, for reproducing the same results.
np.random.seed(0)
tf.set_random_seed(0)
model = tf.keras.Sequential([
keras.layers.Dense(units=10, input_shape=[2]),
keras.layers.Activation('tanh'),
keras.layers.Dense(units=10),
keras.layers.Activation('tanh'),
keras.layers.Dense(units=1),
keras.layers.Activation('sigmoid')
])
model.compile(optimizer='adam', loss='binary_crossentropy', metrics=['accuracy'])
tf_history = model.fit(X_train, y_train, epochs=500, verbose=True, validation_data=(X_val, y_val))
# contour plot
xx, yy = np.mgrid[-1.5:1.5:.01, -1.5:1.5:.01]
grid = np.c_[xx.ravel(), yy.ravel()]
probs = model.predict(grid)[:,0].reshape(xx.shape)
f, ax = plt.subplots(figsize=(8, 6))
contour = ax.contourf(xx, yy, probs, 25, cmap="RdBu",
vmin=0, vmax=1)
ax_c = f.colorbar(contour)
ax_c.set_label("$P(y = 1)$")
ax_c.set_ticks([0, .25, .5, .75, 1])
ax.scatter(X[:,0], X[:, 1], c=y, s=50,
cmap="RdBu", vmin=-.2, vmax=1.2,
edgecolor="white", linewidth=1)
plt.show()
# test accuracy
from sklearn.metrics import accuracy_score
y_test_pred = model.predict(X_test)
test_accuracy = accuracy_score((y_test_pred > 0.5), y_test)
print('\nTest Accuracy = ', test_accuracy)
Train on 1120 samples, validate on 280 samples
Epoch 1/500
1120/1120 [==============================] - 0s 139us/sample - loss: 0.7011 - acc: 0.5357 - val_loss: 0.6926 - val_acc: 0.6036
Epoch 2/500
1120/1120 [==============================] - 0s 50us/sample - loss: 0.6947 - acc: 0.6000 - val_loss: 0.6925 - val_acc: 0.6321
.
.
Epoch 499/500
1120/1120 [==============================] - 0s 52us/sample - loss: 0.0250 - acc: 0.9973 - val_loss: 0.0382 - val_acc: 0.9929
Epoch 500/500
1120/1120 [==============================] - 0s 53us/sample - loss: 0.0245 - acc: 0.9964 - val_loss: 0.0386 - val_acc: 0.9893
Test Accuracy = 0.9916666666666667
Performance of Different NN Architectures
| Model Architecture | Test Accuracy |
|---|---|
| 0 hidden layer | 0.518 |
| 1 hidden layer, 3 hidden units | 0.768 |
| 1 hidden layer, 10 hidden units | 0.970 |
| 2 hidden layers, 10-10 hidden units | 0.991 |
you have seen how deeper model can help. As the model goes more deeper and complex, the performance of the model increases(although this may not be the case every time, especially when we have less data and there is something called vanishing gradients, which we will discuss later). But in general, deeper models improves performance.
Train the models in the notebooks with ‘relu’ activation function instead of ‘tanh’ and compare the performance.
